RESET_ORDER, it is possible to directly copy a section of a CAD drawing without
changing the Order Numbers associated with the section.
USAGE:
In a Macro
Yes
Association
Line
EXAMPLE:
Figure 13 shows a repeating `J' pattern which takes advantage of the RESET_ORDER
command. In this example, the user-defined macro R is used to invoke the function.
Alternatively, it would have been possible to omit the STOPPING_MACRO R and to
substitute RESET_ORDER for R at the appropriate locations in the drawing.

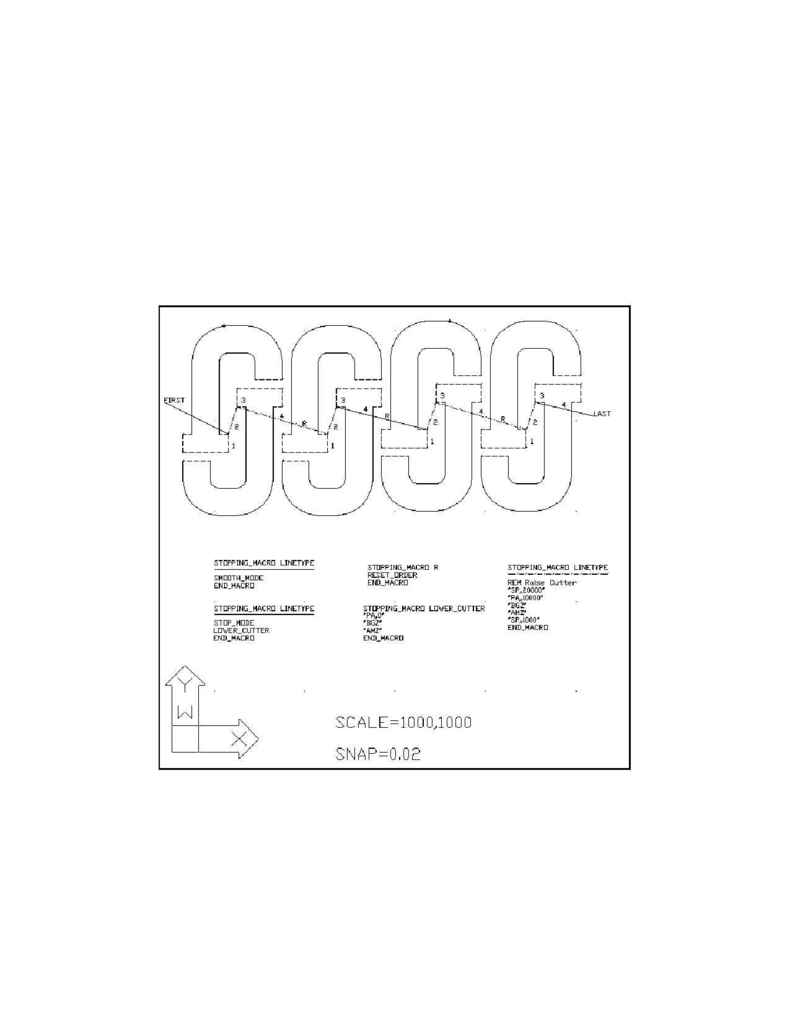

Figure 13:
Use of the RESET_ORDER command
REVERSE_X, REVERSE_Y
PURPOSE:
The REVERSE_X and REVERSE_Y commands are used to mirror the interpretation
of a drawing image. REVERSE_X inverts the direction of the X axis and REVERSE_Y
inverts the direction of the Y axis.
