Galil Motion Control cadman Page 17
that exceeds the CORNER_ANGLE will cause the motion to stop at the transition
between segments.
USAGE:
In a Macro
No
Association
Drawing
NOTE: CORNER_MODE must always be used in conjunction with
CORNER_ANGLE.
EXAMPLE:

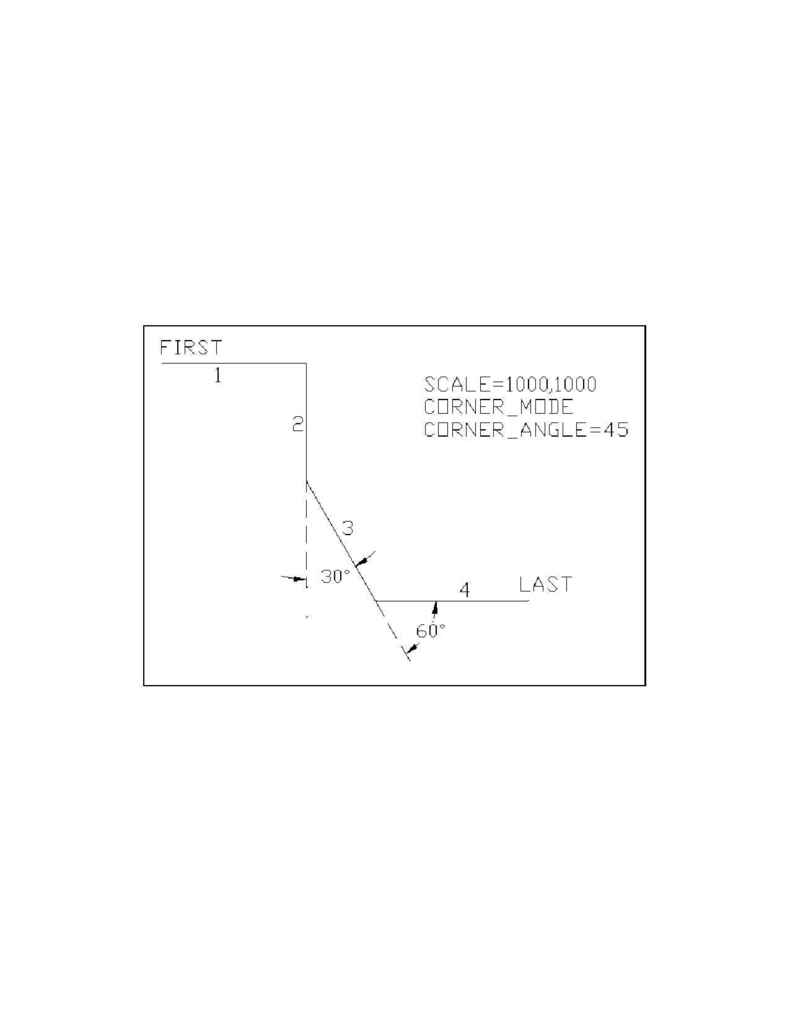

Figure 12 shows the use of the CORNER_MODE command.
Figure 12:
Use of the CORNER_ANGLE and CORNER_MODE commands
FIRST
PURPOSE:
FIRST indicates where the motion path begins in a drawing.
USAGE:
In a Macro
No
