DMC-1410, DMC-1411, DMC-1412
ISA, PC/104, RS232 Econo 1 axis
Hardware Accessories
ICM-1460
The ICM-1460 Interconnect Module provides screw terminals for the 37-pin D-type
cable from the DMC-1410 or DMC-1412, for quick connection of system hardware.
A 40-pin to 37-pin cable allows the ICM-1460 to be used with the DMC-1411.The
ICM-1460 is contained in a metal enclosure with dimensions of 6.9" x 4.9" x 2.6" and
.2" diameter keyholes for mounting.The ICM is normally shipped configured for high
amp enable, +5 V (-HAEN). For low amp enable, order ICM-1460-LAEN.
ICM-1460 OPTO
For applications requiring optoisolated inputs and outputs, the ICM-1460 option
"OPTO" provides 524 V and 25 mA optoisolation on all general inputs and outputs,
home inputs, and limits.
ICM-1460-20W
The ICM-1460-20W provides an internal 20-watt linear amplifier suitable for driving
small servo motors or hydraulic valves.The ICM-1460-20W requires an external sup-
ply of ±10 V to ±30 V (for 200 mA or less, no additional supply is required). Care
should be taken to ensure the average power dissipation across the amplifier is less
than 20 watts.
AMP-1460
The AMP-1460 series is an ICM module above with a PWM amplifier for a brush-type
servo motor.The amplifier provides 6 amps continuous, 10 amps peak at up to 80 Volts.
The gain of the amplifier is 1 A/V and requires an external DC supply from 20 to 80
Volts.The minimum motor inductance is 1 mH and the PWM frequency is 30 kHz.
DMC-1414
The DMC-1414 is a DMC-1412 controller packaged with a PWM amplifier for driving a
brush-type servo motor.The amplifier provides 6 amps continuous at up to 60 volts
and requires a single, external DC supply from 20 to 60 volts.The minimum motor
inductance is 1 mH and the PWM frequency is 30 kHz. Screw terminals provide easy
connection to external devices.

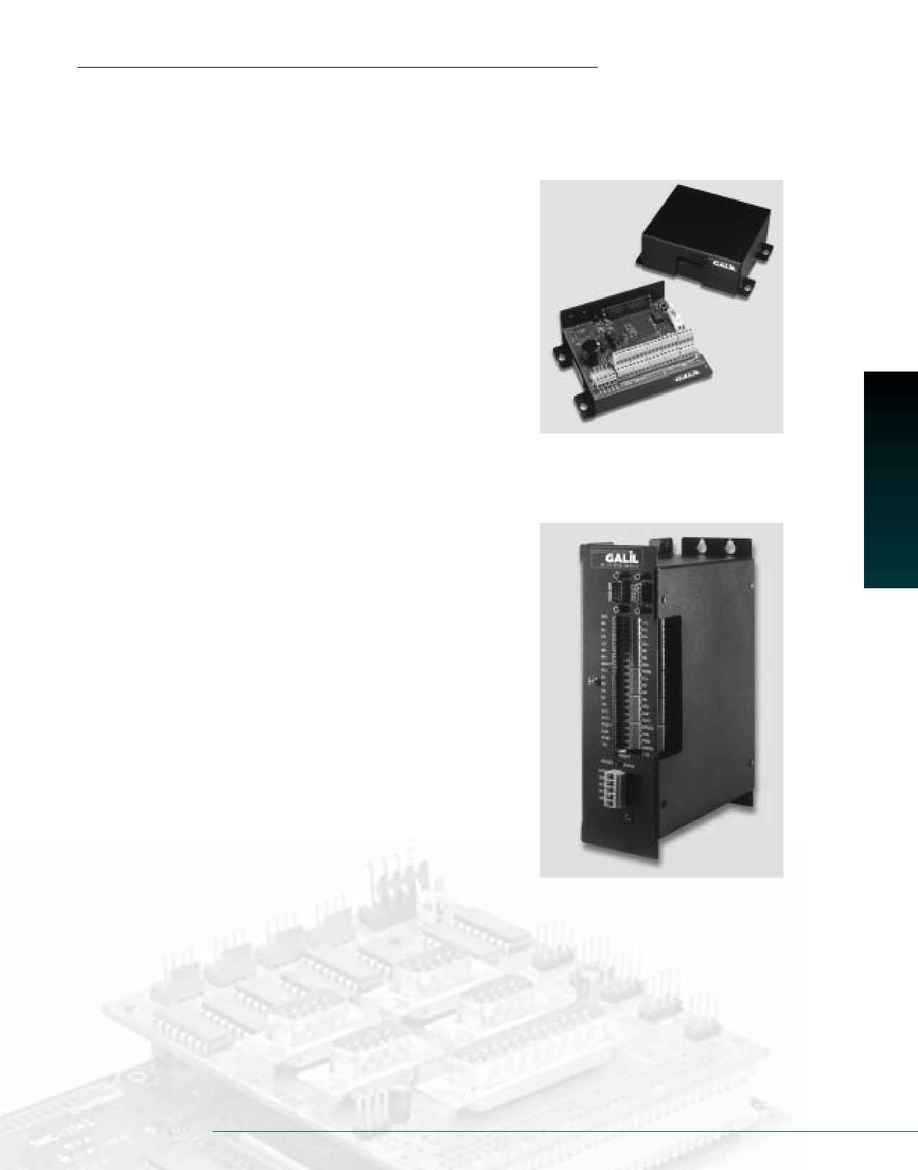

ICM-1460
Interconnect Module
(shown with and without cover)
DMC-1414
CONTROLLERS
--
O
THER
