DMC-21x2 and DMC-21x3 Series
M O T I O N C O N T R O L L E R S
Ethernet /RS232 Econo 1 8 axes
Product Description
Galil`s DMC-21x2 and DMC-21x3 Ethernet motion
controllers are designed for extremely cost-sensitive
and space-sensitive applications.These intelligent, card-
level controllers are available with a variety of plug-in
multi-axis amplifier boards that are designed to elimi-
nate the wiring and any connectivity issues between
the controller and drives.
The DMC-21x2 and DMC-21x3 are similar except
the DMC-21x2 controllers use a 100-pin high-density
SCSI connector and the DMC-21x3 controllers use a
96-pin DIN connector.
The controllers incorporate a 32-bit microcomputer
and provide such advanced features as PID compensa-
tion with velocity and acceleration feedforward, pro-
gram memory with multitasking for simultaneously
running up to eight programs, and uncommitted I/O
for synchronizing motion with external events. Modes
of motion include point-to-point positioning, jogging,
linear and circular interpolation, contouring, electronic
gearing and ECAM.
Like all Galil controllers, these controllers use a sim-
ple, English-like command language which makes them
very easy to program.Galil`s WSDK servo design software
further simplifies system set-up with "one-button"servo
tuning and real-time display of position and velocity
information.Communication drivers are available for
DOS, Linux and all current Windows operating systems.
Features
Ethernet 10Base-T port; (1) RS232 port up to 19.2kbaud
Ethernet supports multiple masters and slaves.TCP/IP, UDP
and ModBus protocol for communication with I/O devices
Available in 1 through 8 axis versions
User-configurable for stepper or servo motors on any
combination of axes. Optional firmware for piezo-ceramic
motors. Sinusoidal commutation for brushless servo motors
Accepts up to 12 MHz encoder frequencies for servos.
Outputs up to 3 MHz for steppers
PID compensation with velocity and acceleration feedfor-
ward, integration limits, notch filter and low-pass filter
Modes of motion include jogging, point-to-point position-
ing, contouring, linear and circular interpolation, electronic
gearing and ECAM. Features ellipse scaling, slow-down
around corners, infinite segment feed and feedrate override
Over 200 English-like commands executable by controller.
Includes conditional statements and event triggers
Non-volatile memory for programs, variables and arrays.
Concurrent execution of up to eight programs
Dual encoders, home and limits for each axis
8 TTL uncommitted inputs and 8 outputs for 1- to 4-axis,
16 in/16 out for 5- to 8-axis models
Optically isolated I/O and 500 mA highside outputs
available with ICM-20105
Add 8 analog inputs and 40 digital I/O with DB-28040
High speed position latch and output compare for each axis
Small size: 1-4 axes card: 4.25" x 7.0"
5-8 axes card: 4.25" x 10.75"
DIN-Rail mount option
Accepts +5 V, +/-12 V DC inputs; DC-to-DC converter option
for single 18 V to 72 V DC input
DMC-21x2: 100-pin SCSI connectors for each set of 4 axes.
ICM-2900 breaks-out 100-pin cable into screw terminals
DMC-21x3: 96-pin DIN connectors for each set of 4 axes.
ICM-20100 provides D-connectors for each axis
Distributed control option with DMC-31x3 series
Communication drivers for Windows, DOS and Linux
Custom hardware and firmware options available
CE certified

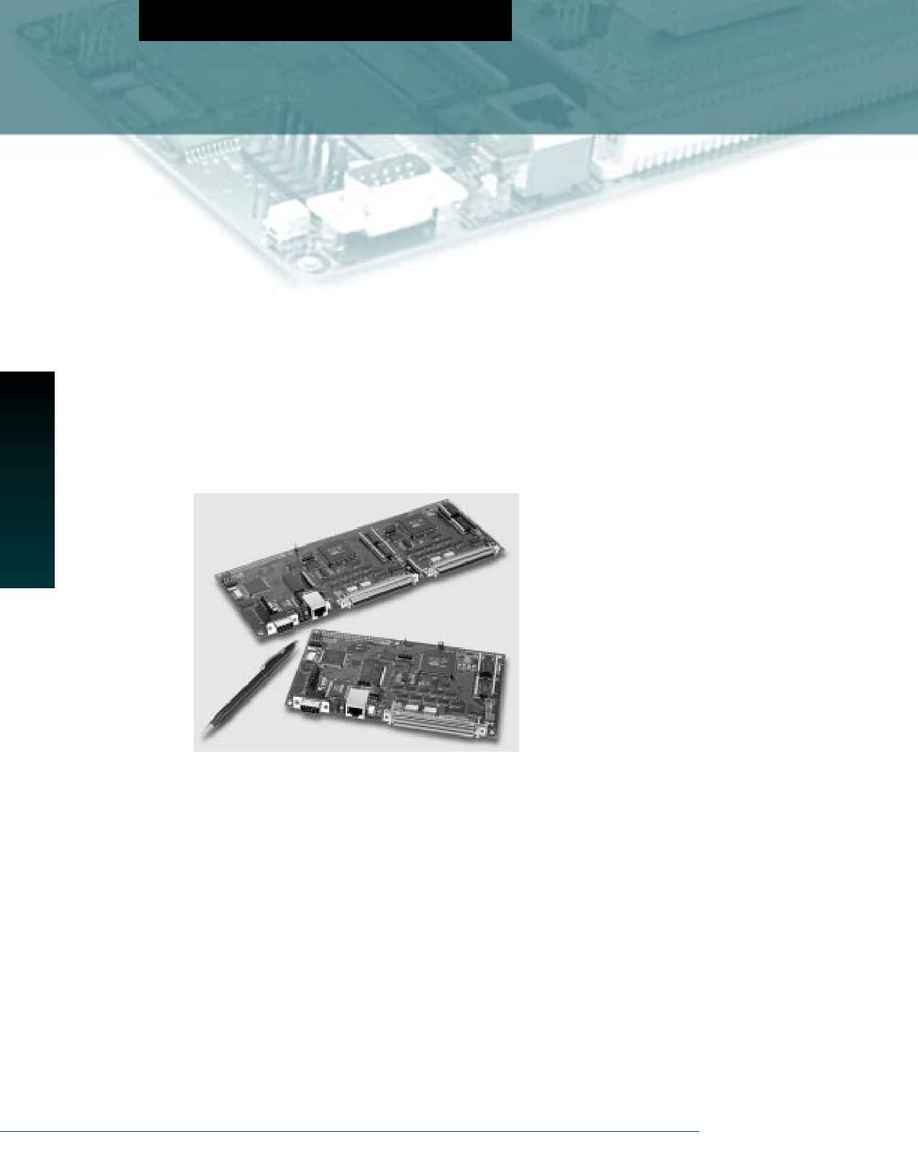

Above: DMC-2182
8-axis Controller Card
(horizontal connector
mount)
Below: DMC-2142
4-axis Controller Card
(horizontal connector
mount)
