Hardware Accessories
ICM-1460
The ICM-1460 Interconnect Module provides screw terminals for the 37-pin D-type cable from
the DMC-1417, for quick connection of system hardware.The ICM-1460 is contained in a metal
enclosure with dimensions of 6.9" x 4.9" x 2.6" and 0.2" diameter keyholes for mounting.The
ICM is normally shipped configured for high amp enable, +5 V (-HAEN). For low amp enable,
order ICM-1460-LAEN.
ICM-1460 OPTO
For applications requiring optoisolated inputs and outputs, the ICM-1460 option "OPTO" provides
524 V and 25 mA optoisolation on all general inputs and outputs, home inputs, and limits.
ICM-1460-20W
The ICM-1460-20W provides an internal 20-watt linear amplifier suitable for driving small
servo motors or hydraulic valves.The ICM-1460-20W requires an external supply of ±10 V to
±30 V (for 200 mA or less, no additional supply is required). Care should be taken to ensure
the average power dissipation across the amplifier is less than 20 watts.
AMP-1460
The AMP-1460 series is an ICM module above with a PWM amplifier for a brush-type servo
motor.The amplifier provides 6 amps continuous, 10 amps peak at up to 80 Volts.The gain of the
amplifier is 1 A/V and requires an external DC supply from 20 to 80 Volts.The minimum motor
inductance is 1 mH and the PWM frequency is 30 kHz.
DMC-1417
PCI Bus, 1 axis
PART NUMBER
DESCRIPTION
QUANTITY 1 QUANTITY 100
DMC-1417
1-axis PCI
$ 595
$ 395
CABLE 37-pin D
37-pin cable
$ 25
$ 15
ICM-1460
Interconnect Module for DMC-1417. Specify -HAEN
for high amp enable or -LAEN for low amp enable
$ 145
$ 95
ICM-1460-OPTO
ICM with optoisolated inputs and outputs
$ 195
$ 145
ICM-1460-20W
ICM-1460 with 20-watt amplifier
$ 220
$ 145
AMP-1460
ICM with on-board, PWM amplifier for 1 brush-type servo
$ 495
$ 345
Galil Utilities
Communication drivers, SmartTERM software
$ 20 for CD; free download
DMCWIN32
Windows API Tool Kit (VB, C, C++, etc.)
Included with Utilities
WSDK
Set-up, tuning and analysis software
$ 195
ActiveX Tool kit
Custom ActiveX controls for Visual Basic or Visual C++
$ 595
Galil offers additional quantity discounts for purchases between 1 and 100. Consult Galil for a quotation.

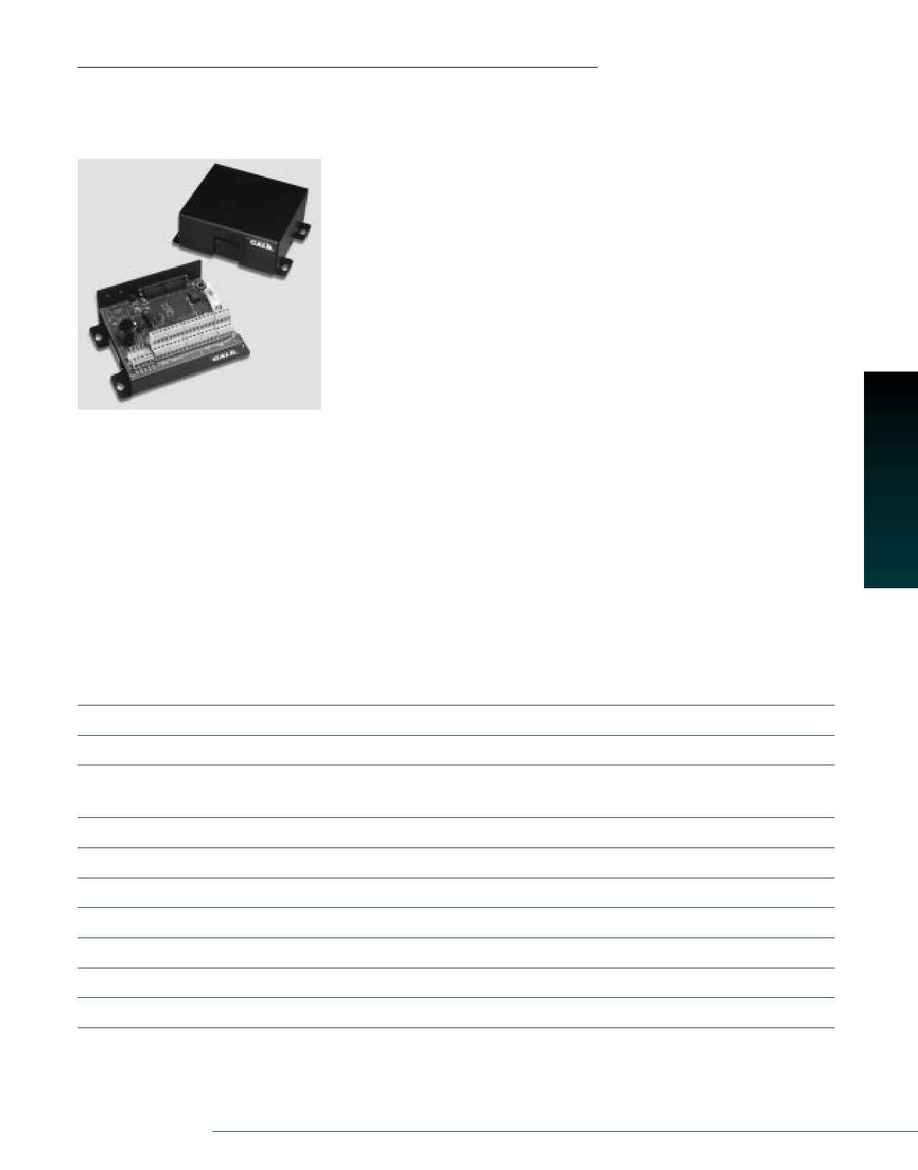

ICM-1460
Interconnect Module
(shown with and without cover)
