The CPS Series are unregulated DC power supplies that complement the MSA
and MBA amplifiers to provide a complete solution to single- and multi-axis
drive applications. The CPS-15-40 and the CPS-15-72 are contained on a
base mounting plate that can accommodate up to 4 MSAs or MBAs.
Each connects to AC power and to the MSAs or MBAs with screw-
type terminals. The CPS-12-24, CPS-6-48, and CPS-4-72 are each
enclosed and provide mounting for up to two MSAs on a base plate. AC
connections are made using a standard-style line cord, and MSA connections
are internal. AC rating is 110/220 VAC, 50/60 Hz, ±10%.
Model
Power Rating
Dimensions
CPS-12-24 24 VDC @ 12 A cont. 9"
×
5.75"
×
6" encl.
CPS-6-48 48 VDC @ 6 A cont. 9"
×
5.75"
×
6" encl.
CPS-4-72 72 VDC @ 4 A cont. 9"
×
5.75"
×
6" encl.
CPS-15-40 40 VDC @ 15 A cont. 13"
×
10.5"
×
6"
CPS-15-72 72 VDC @ 15 A cont. 13"
×
10.5"
×
6"

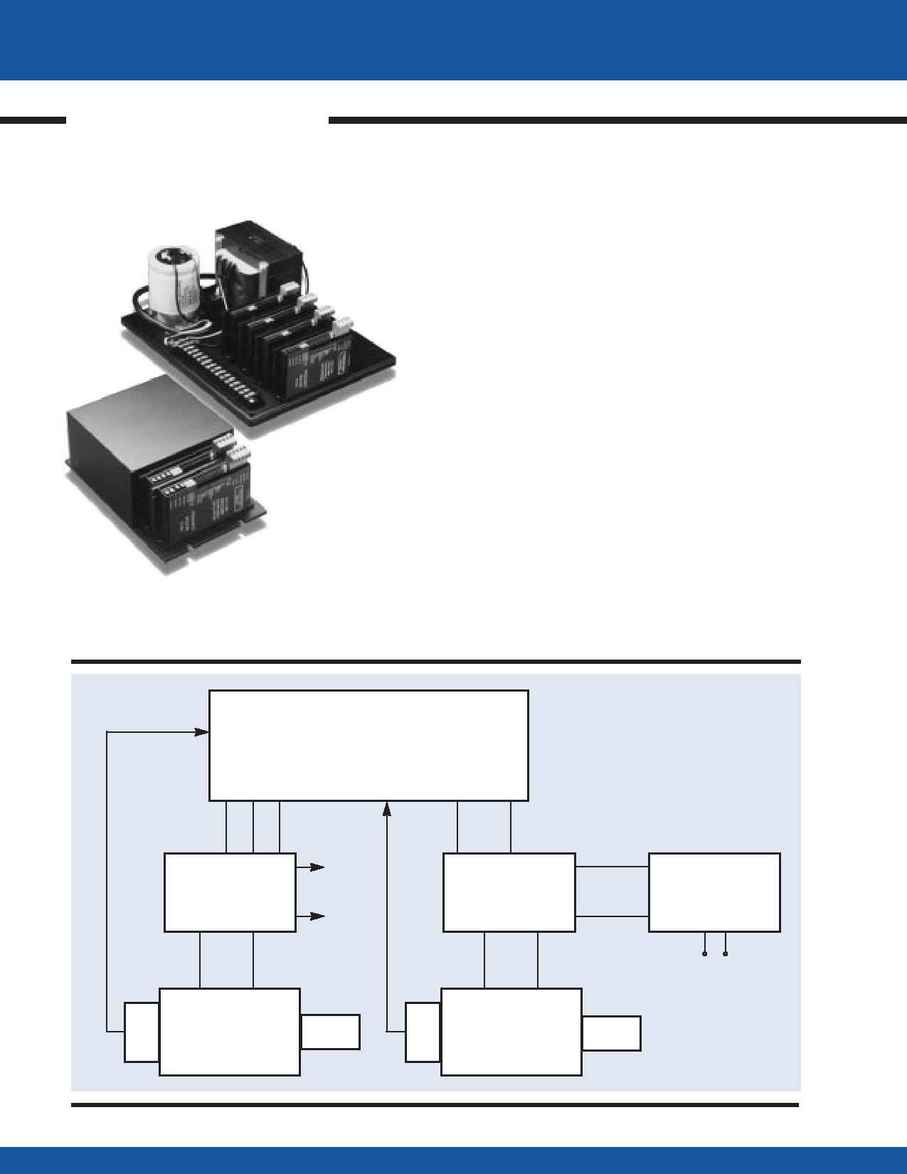

The following connection diagram illustrates the connection between a
DMC-1520 controller, a shared power supply, two amplifiers, and two motors.
Note that only one ground line is connected between the DMC-1520 and the
amplifiers to avoid ground loops.
Power Supplies
P O W E R A M P L I F I E R S
CPS
88
Power Amplifiers
·
Galil Motion Control, Inc.
·
800-377-6329
POWER SUPPLIES
MSA-12-80 Schematic
ACMD
CHA, CHB
CHA, CHB
ACMD
AEN
AEN
GND
MSA-12-80
X AXIS
MSA-12-80
Y AXIS
CPS-15-72
P4 TO CPS-15-72
4
11
2
P1
P2
BLK
RED
MOTOR 500/1000
MOTOR 500/1000
E
P1
P2
4
11
P5 Vs
P4 GND
BLK
RED
AC 120V
P5 TO CPS-15-72
E
CPS Series
Power Supplies
ICM-1100 INTERCONNECT
AND
DMC-1500 CONTROLLER
