G-CODE TRANSLATOR
F E A T U R E S
s
Windows-based translator con-
verts G-codes into DMC
motion control commands for
DMC-1700, DMC-1500 or
DMC-1000 controllers
s
Translates 2D or 3D motion
trajectories
s
Tool offset (Kerf) compensation
s
Modes of motion include stop
mode, constant feedrate and
slow-down around corners
s
Both G-code and DMC files
can be easily edited and viewed
s
3 D graphical display of motion
path
s
M-codes can be defined by user
s
G-codes can be customized by
user
s
Interpreter mode for manual
data input (MDI)
s
Software handwheel function
for 3D positioning
s
Terminal for direct communi-
cation with controller
s
Recommended for cutting
applications such as Plasma,
waterjet and laser
s
Accepts output files from popu-
lar CAD/CAM programs such
as Surfcam
®
System Requirements
s
4 MB RAM minimum (8 MB recommended)
s
386 minimum (486 recommended)
s
Windows 3.1, or Windows NT, or Windows 95

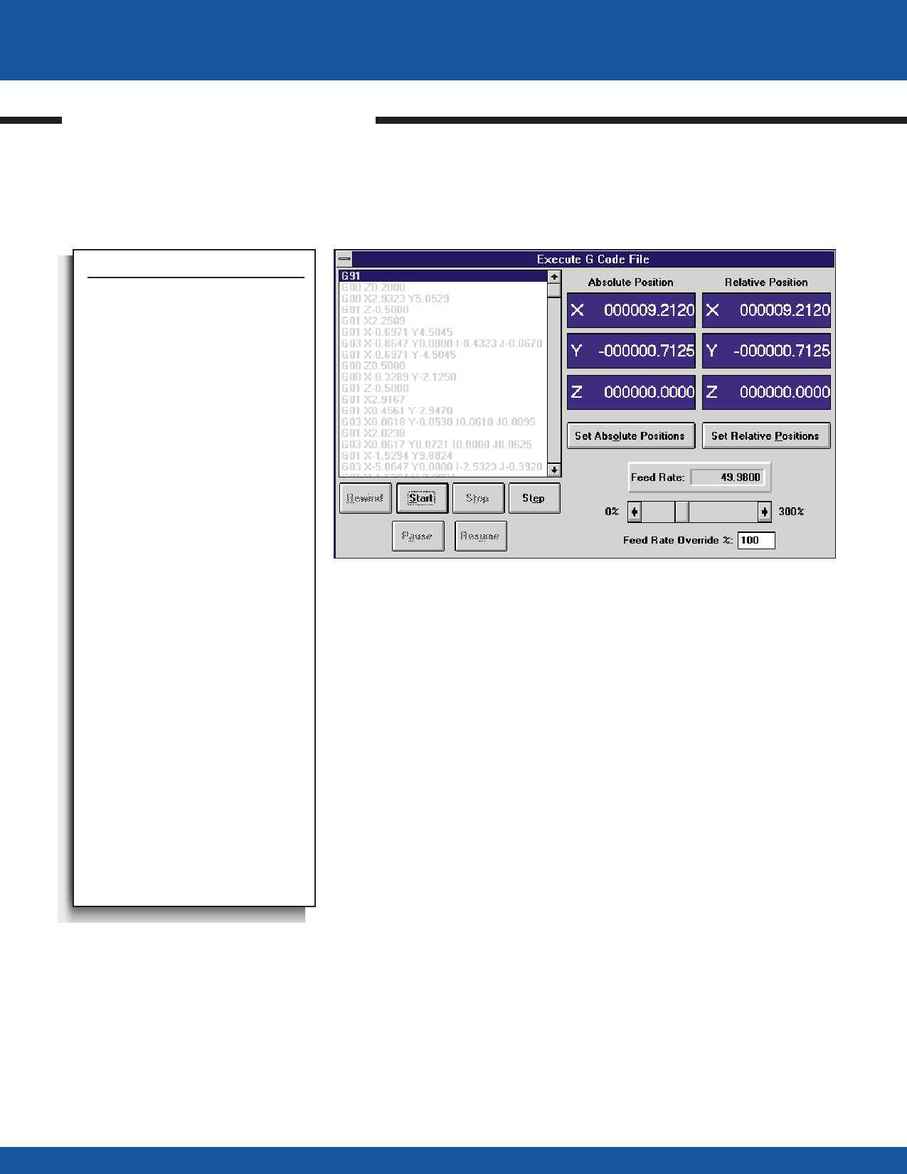

Galil's G-code translator displays the
G-code file and X, Y, Z positions.
