The throttle body size on the new GSX-R1000 is as follows:
The primary throttle valve diameter is 42mm.
Throttle body inlet diameter is 50mm, outlet 42mm.
Throttle Body Size
2003 GSX-R1000
A) Throttle Body Inlet Diameter
50 mm
B) Primary Throttle Valve Diameter
42 mm
C) Throttle Body Outlet Diameter
42 mm
D) Length
90 mm
E) Height
136 mm
2002 GSX-R1000
50 mm
42 mm
42 mm
90 mm
143 mm

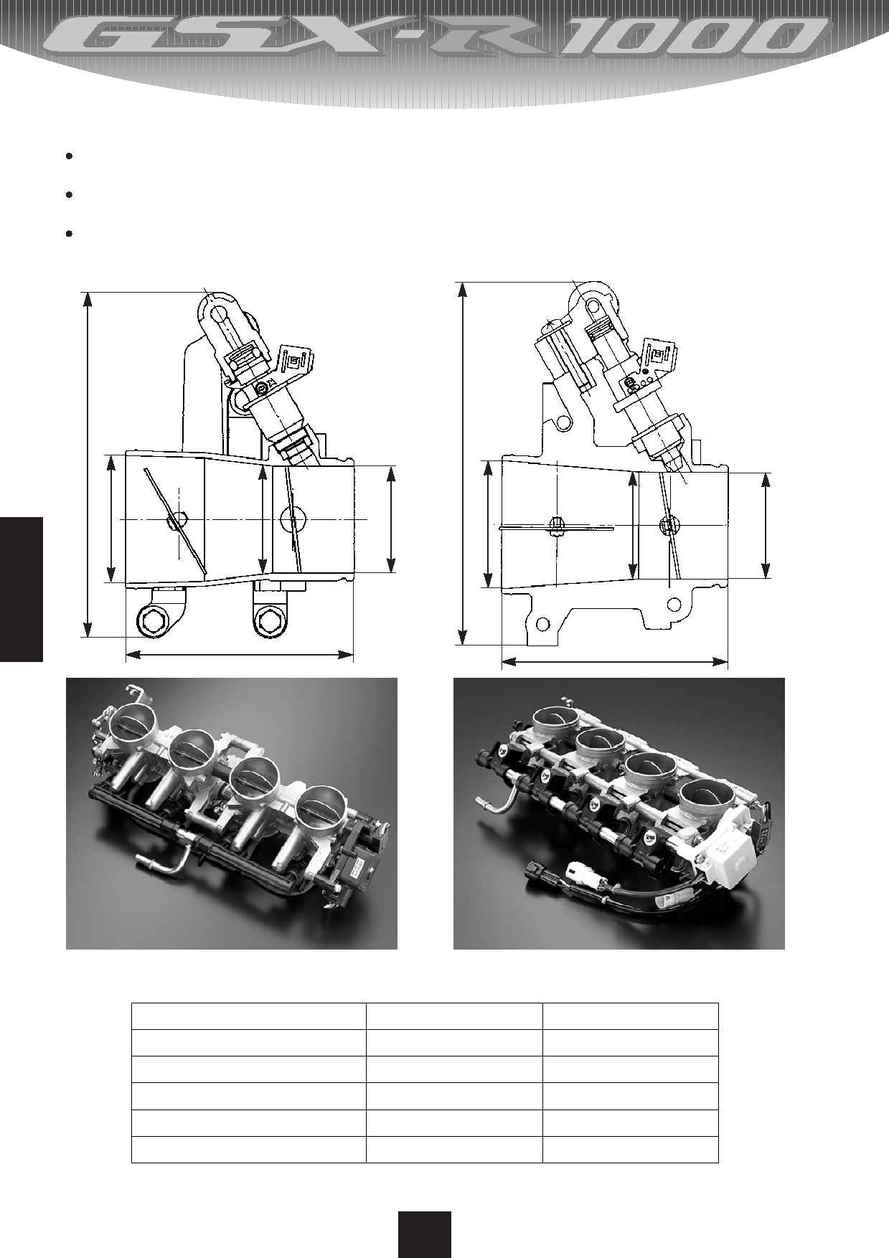

2003 GSX-R1000 Fuel Injection
2002 GSX-R1000 Fuel Injection
A
D
C
E
B
A
D
C
E
B
