OPD

radius (cm)

Wavefront Error (pm)

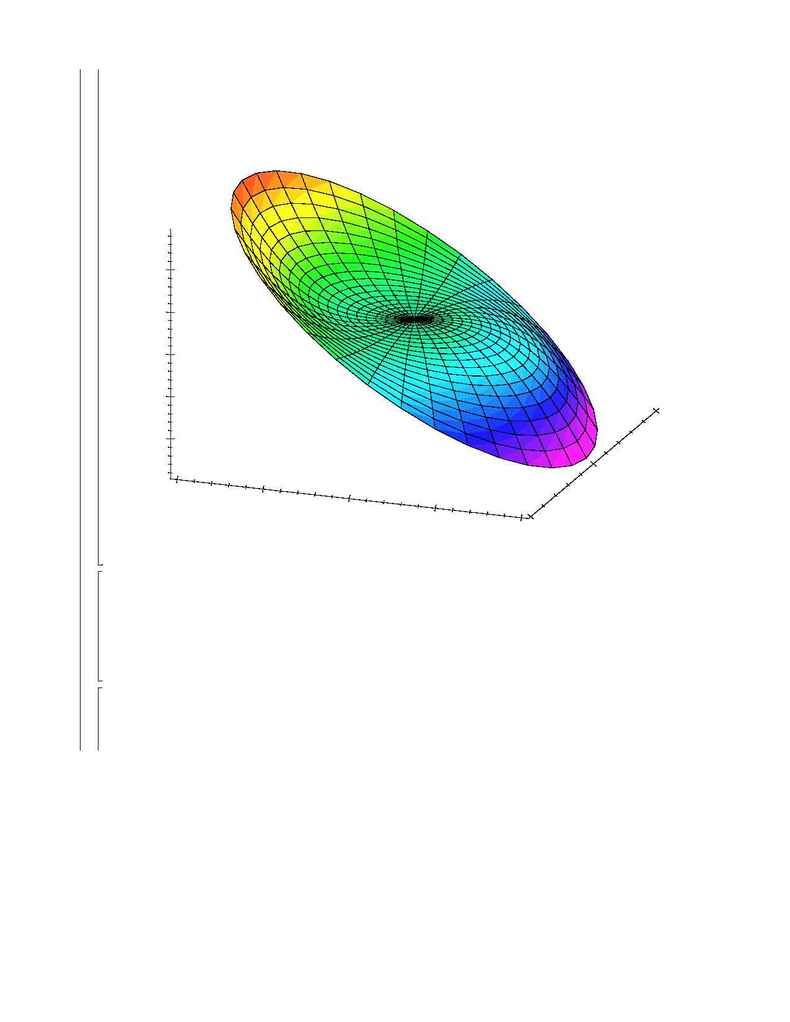

Now the residual coma terms are apparent at about 3 picometers. We see that the
compensating rotation of the primary has reduced the coma aberration by 6 orders of

magnitude. The residual is due to the

2

component of the coma, which we did not correct for

in the rotation. Let's see what else besides coma that we have left. We should expect a very
small astigmatism.

>

PlotZernikeWavefront( opd, [Delta,psi], c,
[[0,0],[1,1],[2,0],[4,0],[6,0],[8,0],[10,0],[12,0],
[3,1],[5,1],[7,1],[9,1],[11,1]],
`fm`, [10*10^(-4),epsilon*arcsec], 100.0, 10.0 );
