OPD

radius (cm)

Wavefront Error (pm)

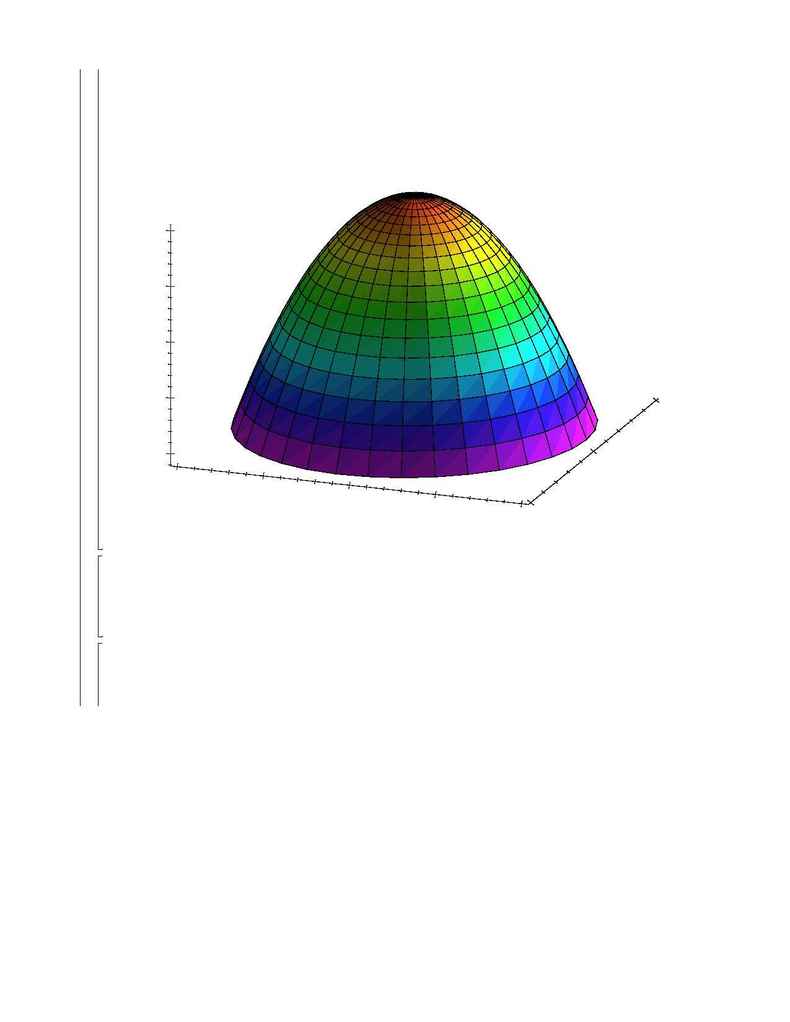

The coma due to the translation has disappeared, leaving only ~200 picometers of defocus.
This tells us two things: (1) there is a rotation of the primary mirror that compensate for a
lateral displacement, at least as far as the dominant coma aberration is concerned; and (2) coma
is by far the dominant aberration. If we remove the series of defocus terms, we have

>

PlotZernikeWavefront( opd, [Delta,psi], c,
[[0,0],[1,1],[2,0],[4,0],[6,0],[8,0],[10,0],[12,0]],
`pm`, [10*10^(-4),epsilon*arcsec], 100.0, 10.0,
orientation=[-70,65] );
